The product image may slightly differ as it is representative of the family and not the model.

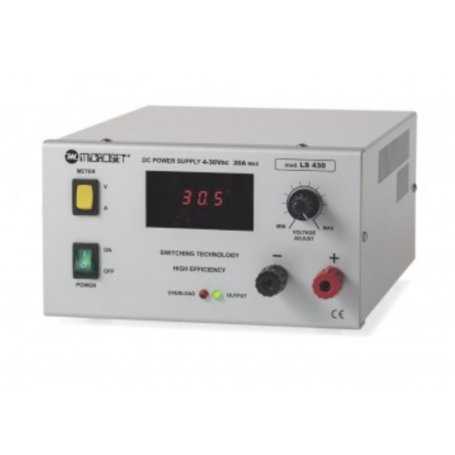

LS 430 Microset - Adjustable switching stabilized power supply 30A - 4-30V
Description
Available models: LS 430
Efficient and reliable bench power supply Microset LS 430 of superior quality in high-efficiency switching technology.
Characterized by highly professional and functional construction, with compact dimensions and elegant design, easy and immediate adjustment of the output voltage with display of voltage and current values on a large digital display.
Continuous H24 long-lasting service, excellent multistage filtering that gives absence of radio disturbance emissions, also usable for telecom use in HF and VHF bands.
Equipment:
- precise digital instrument for measuring output voltage and current
- magnetic gravity fan with speed control
- connections to the load through bushings on the front
Features:
- Input network: 230VAC ±10% 50Hz (option 110V 60Hz)
- Net stability: ±0.5%
- Load stability: ±0.5% ±300mV tip.
- Protections: overload, overtemperature, network fuse
- Ventilation: forced, fan speed control
- Instrument: digital display V+A 3 digits
- Ambient temp.: -5 +40°C
- Humidity: 90% max non-condensing
- Altitude: 2000 mt. a.s.l. max
Applications:
- Laboratory
- Radio telecommunications
- Industry
- Service
- Test lines
Our rating:
- Reliability
- Price
- Features
- ⚡⚡⚡⚡
- ⚡⚡⚡⚡⚡
- ⚡⚡⚡
Main technical specifications
| MODEL | LS 430 |
|---|---|
| Nominal output current |
30A |
| Output voltage |
4-30V |
| Input voltage range | 230VAC ±10% 50Hz (option 110V 60Hz) |
| Operating temperature |
-5 +40°C |
| PFC | NO |
| Dimensions | 185x260x110 |
| Certifications | CE, EMC2014/30/UE, LVD2014/35/UE, RoHS |
| For purchases and samples | CONTACT US |
See also:
Download the Power Supply Catalogues for LEDs in the attachments tab.
Data sheet
- Output Regulation Type
- Constant Current / CC
Constant Voltage / CV - Rating
- 453
- PFC
- No
- Output Voltage Nr.
- 1
- Number of Ports
- 1
- Mechanical Mounting Format
- Bench
- Output Current A
- 30
- Certifications
- This is not a sentence in Italian. If you meant "CE" as an abbreviation, it could stand for "Conformità Europea" which translates to "European Conformity" in English. If it's part of a larger sentence or context, please provide more details.
- Applications
- Laboratory
